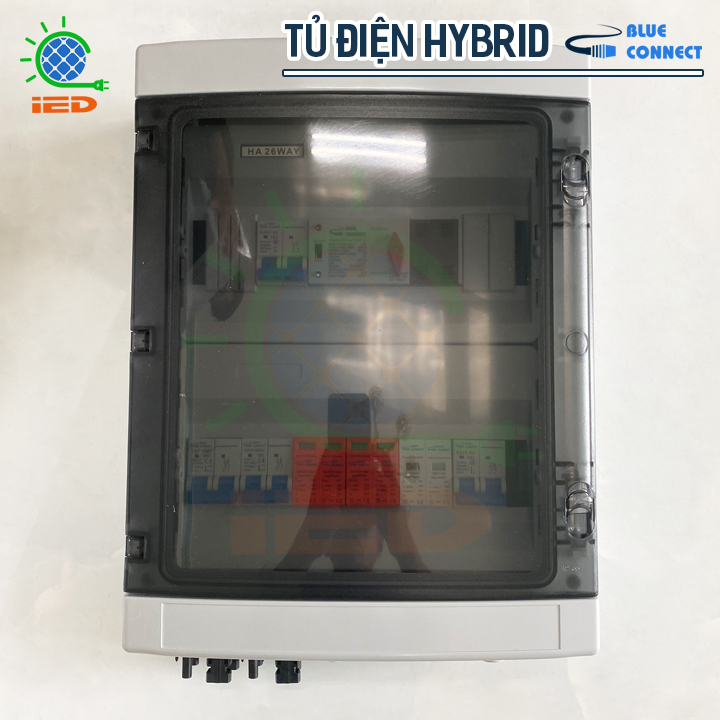

Tủ điện năng lượng mặt trời Hybrid 2 MPPT Blue Connect

Bao gồm các thiết bị:
*2 CB AC 63A
230/400V~
IEC60898-1
GB/T10963.1
4500A
*2 CB DC 63A
500V
IEC60898-2
GB/T10963.2
4500A
*2 chống sét DC
U(cpv)(dc): 1050V
I(n): 20kA
I(max): 40kA
U(p): 3.6kV
IP20
*Chống sét AC
U(c) 385V
I(n): 10kA
I(max): 20kA
U(p): 1.2kV
IP20
*ATS
Model: GDQ6-100 II
Rated working current: 100A
Rated working voltage: 230V AC
Insulation voltage: 690V AC
Impact-resistant voltage: 8KV
Tse class: PC
Frequency: ~50/60Hz
Date: R 2 2 0 5
Standard: IEC/EN60947-6-1
Rated short-circuit current limit (RT16-00/63A): 50KA
Control voltage: AC230V
